Water Treatment Plant, Kvernevik, Bergen, Norway

Dry Sludge Silos 2 x 50 m3 with discharge equipment and splash protection device


Download as pdf


Saxwerk delivered in 2015 two new dry sludge silo for the water treatment plant, Kvernevik in Bergen, Norway.

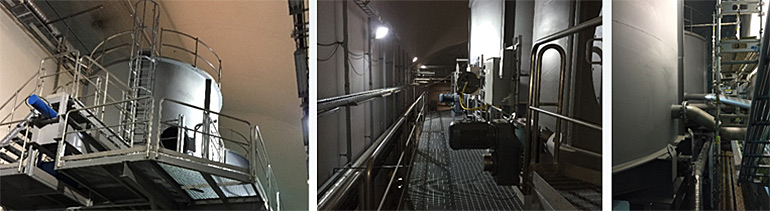

Saxwerk has delivered, installed and commissioning two sludge silo consisting of a distribution screw, steel silo, sliding frame, discharge screw and a splash protection device. The system unload sludge to a lorry under the silos.

Technical data:
Material: Dry sludge
Capacity: 2 x 90 m3/h
Diameter: 4 500 mm
Casing Height: 3 200 mm
Support Height: 5 800 mm
Volume: 2 x 50 m3
