Water Treatment Plant, Sandviken, Bergen Norway
Dry Sludge Silos 2 x 34 m3 with discharge equipment and splash protection device
PLANT REPORT SAX 459

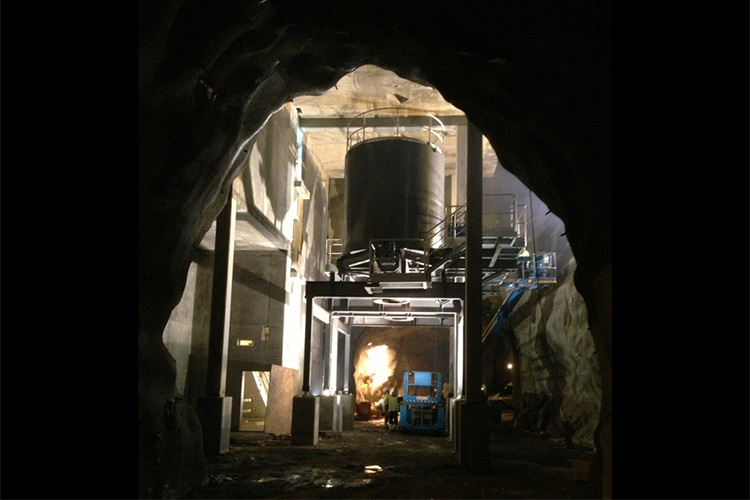

Saxwerk delivered in 2013 two new dry sludge silo for the water treatment plant, Ytre Sandviken in Bergen, Norway.

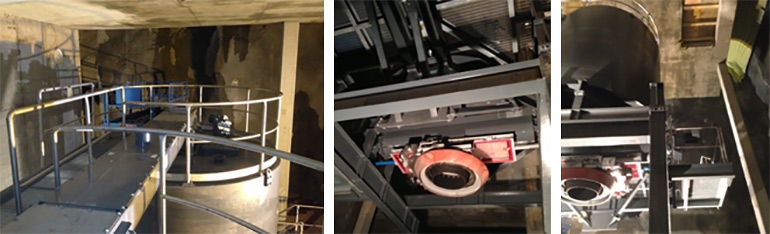

Saxwerk has delivered, installed and commissioning two sludge silo consisting of a distribution screw, steel silo, sliding frame, discharge screw and a splash protection device. The system unload sludge to a lorry under the silos.
| Technical data: | |
|---|---|
| Material: | Dry sludge |
| Capacity: | 2 x 90 m3/h |
| Diameter: | 3 500 mm |
| Casing Height: | 3 600 mm |
| Support Height: | 6 200 mm |
| Volume: | 3 x 34 m3 |
