Project Description

Biogas Plant, Bergen, Norway

Dry Sludge reception bins 2 x 138 m3 with discharge equipment.

PLANT REPORT SAX 592-1

Download as pdf

Saxwerk delivered in 2015 two new dry sludge reception bins for the Biogas plant, in Bergen, Norway.

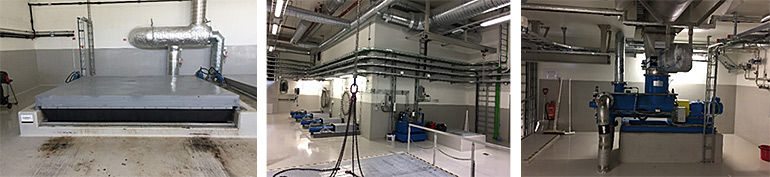

Saxwerk has delivered, installed and commissioning two sludge bins consisting of a concrete bin, hydraulic hatch, push floor and discharge screw. The system fills up with a lorry.

Technical data:
Material: Dry sludge
Capacity: 2 x 5 m3/h
Width: 4 000 mm
Length: 5 000 mm
Height: 6 500 mm
Volume: 2 x 138 m3
