Project Description

Ljusdal Energi AB, Ljusdal, Sweden

Fuel Storage 2 x 170 m3 and fuel handling/screening for a district heating plant.

PLANT REPORT SAX 489

Download as pdf

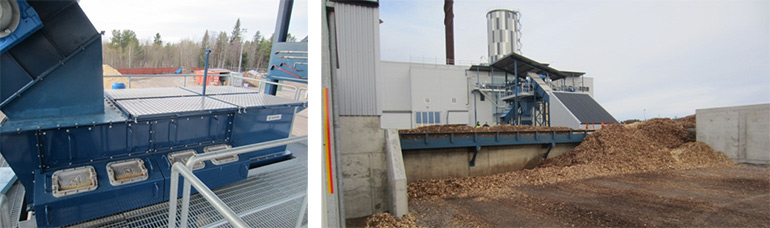

Saxwerk delivered in 2013 a new fuel storage for Ljusdal Energi at their facility in Ljusdal, Sweden. One complete new fuel handling and screening system was delivered for the new Energy Plant.

Saxwerk has delivered, installed and commissioning a fuel storage consisting of a push floor, levelling screw, scraper conveyors and screening station. The dosing bin placed after the crane handling is also included in Saxwerk’s delivery.

Technical data:
Material: Wood chips, sawdust, bark
Capacity:
2 x 120 m3/h
Length: 2 x 15 000 mm
Width: 2 x 4 500 mm
Height: 2 x 2 500 mm
Volume: 2 x 170 m3
