Project Description

Water Treatment Plant, Helsingborg, Sweden

2 Dry Sludge Silos 100 m3 with discharge equipment

PLANT REPORT SAX 1006

Download as pdf

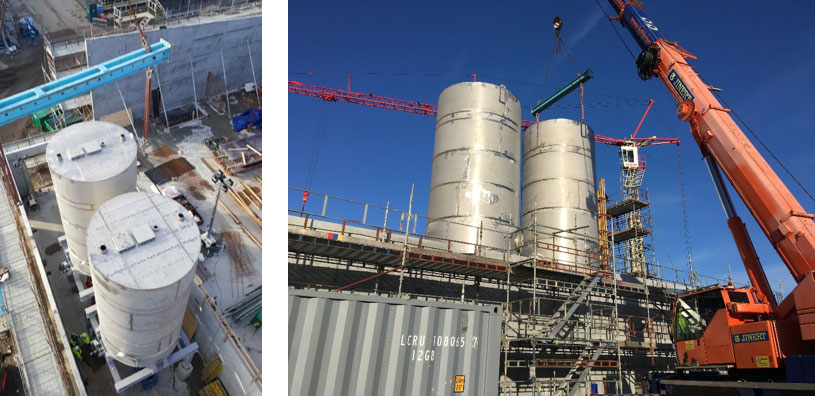

Saxwerk delivered in 2019 two new dry sludge silo for the Water Treatment Plant in Helsingborg, Sweden.

Saxwerk has delivered, installed and commissioning two sludge silos consisting of a stainless steel silos, sliding frames, discharge screws type DM. After the screw we have a moving bellow system with valve & moving bellow.

Technical data:
Material: Dry Sludge
Capacity: 2×80 m3/h
Diameter: 4 000 mm
Casing Height: 8 000 mm
Support Height: 5 500 mm
Volume: 2×100 m3
