Water Treatment Plant, Roslagsvatten, Åkersberga, Sweden

Dry Sludge Silos 110 m3 with discharge equipment.

PLANT REPORT SAX 637

Download as pdf



Saxwerk delivered in 2015 one new dry sludge silo for the water treatment plant, Roslagsvatten in Åkersberga, Sweden.

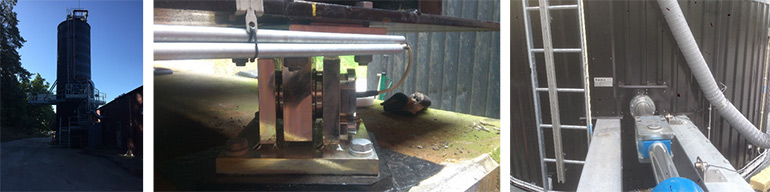

Saxwerk has delivered, installed and commissioning one sludge silo consisting of a distribution screw ,steel silo, sliding frame, discharge screw and a complete control system with outloading panel. The system unload sludge to a lorry outside the silos.

Technical data:
Material: Dry sludge
Capacity: 80 m3/h
Diameter: 4 000 mm
Casing Height: 8 800 mm
Support Height: 5 000 mm
Volume: 110 m3
